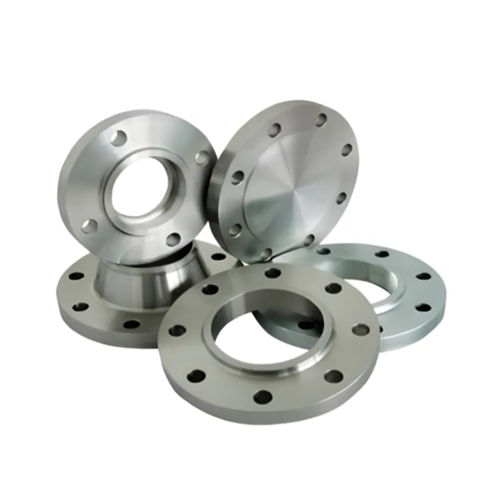

Stainless Steel Flange
9
wp-singular,product-template-default,single,single-product,postid-522,wp-theme-bridge,wp-child-theme-bridge-child,theme-bridge,bridge-core-3.3.4.7,woocommerce,woocommerce-page,woocommerce-no-js,qode-page-transition-enabled,ajax_fade,page_not_loaded,,qode-title-hidden,columns-4,qode-child-theme-ver-1.0.0,qode-theme-ver-30.8.8.7,qode-theme-bridge,disabled_footer_top,wpb-js-composer js-comp-ver-8.7.2,vc_responsive
Stainless Steel Flange

Stainless Steel Flange

📞 WhatsApp Us
SKU: 0014 Category: Tag:
Description

Stainless Steel Forged Flanges are high-performance components designed to provide secure and leak-proof connections in piping systems. Manufactured through a forging process, these flanges offer superior strength, structural integrity, and reliability compared to standard alternatives.

Installed at the ends of pipes, valves, or equipment, they enable easy assembly, alignment, and maintenance of piping systems. Their precision design ensures a tight fit, simplifying installation as well as future disassembly and replacement.

With excellent resistance to corrosion, heat, and pressure, Stainless Steel Forged Flanges are ideal for demanding environments, including water treatment, chemical processing, oil and gas, and marine applications. Built for durability and long service life, they deliver consistent performance in both commercial and industrial settings.

SORF

Size 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 65mm, 80mm, 100mm, 125mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm
Material Stainless Steel
Type -Flat Face
-Raised Face
Standard ASTM A182 / A182M or ASME SA182 / SA182M
Class Standard Type JIS 10K (304) / JIS 5K (304) / BS10 (304) TABLE E / STD BORE (304) BS4504 / ANSI 150# (304)



WNRF

Size 15mm, 20mm, 25mm, 32mm, 40mm, 50mm, 65mm, 80mm, 100mm, 125mm, 150mm, 200mm, 250mm, 300mm
Material Stainless Steel
Standard ASTM A182 / A182M or ASME SA182 / SA182M
Class Standard Type ANSI 150# (304)


BLIND

Size 15mm, 20mm, 25mm, 32mm , 40mm, 50mm, 65mm, 80mm, 100mm, 125mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm
Material Stainless Steel
Type -Flat Face
-Raised Face
Standard ASTM A182 / A182M or ASME SA182 / SA182M
Class Standard Type JIS 10K (304) / JIS 5K (304) / BS10 (304) TABLE E / STD BORE (304) BS4504 / ANSI 150# (304)


Application:
Oil and Gas Pipeline, Chemical Industry, Plumbing, Water Supply Systems, Power Plant, Paper & Pulp Industry, General Purpose Applications, Fabrication Industry, Food Processing Industry, Structural Pipe.
